YULC (Yes, a Usb-C Led Controller)

YULC provides two ways to feed your LED creations.

• Take advantage of the supported Power Delivery 3.0 protocol and ask for up to 100W from your compatible charger choosing one of these voltages: 5V, 9V, 12V, 15V and 20V. Using a Type-C PD charger will make you save a lot of space in your setup while
  still being highly efficient.

• Connect to the 2.5x5.5mm barrel jack any power supply up to 24V that you already have!

Thanks to YULC's internal structure, you'll be able to set
it up in the best way possibile for your particular application and led
strips. How?

Direct routing Power: Routing the input power straight to the strips for maximum efficiency.

Bucking-Down Power: Using the built-in converter to
deliver 5V or 12V to your strips, with a maximum of 20A. Simply
populate one of the two fuse holders to select your preference.

What really sets YULC apart, is the integrated buck
converter that you can use with both the barrel jack or both the USB-C
input. This solutions allows you to match exactly your desired
voltage/current combination at the output, without being forced to use
power supplies of the same voltages of the strips you want to power.
Also forget to have two power supplies, one for the microcontroller and
the bigger one for the strips. With YULC everything has been reliably
compressed in one single board that take care of everything.

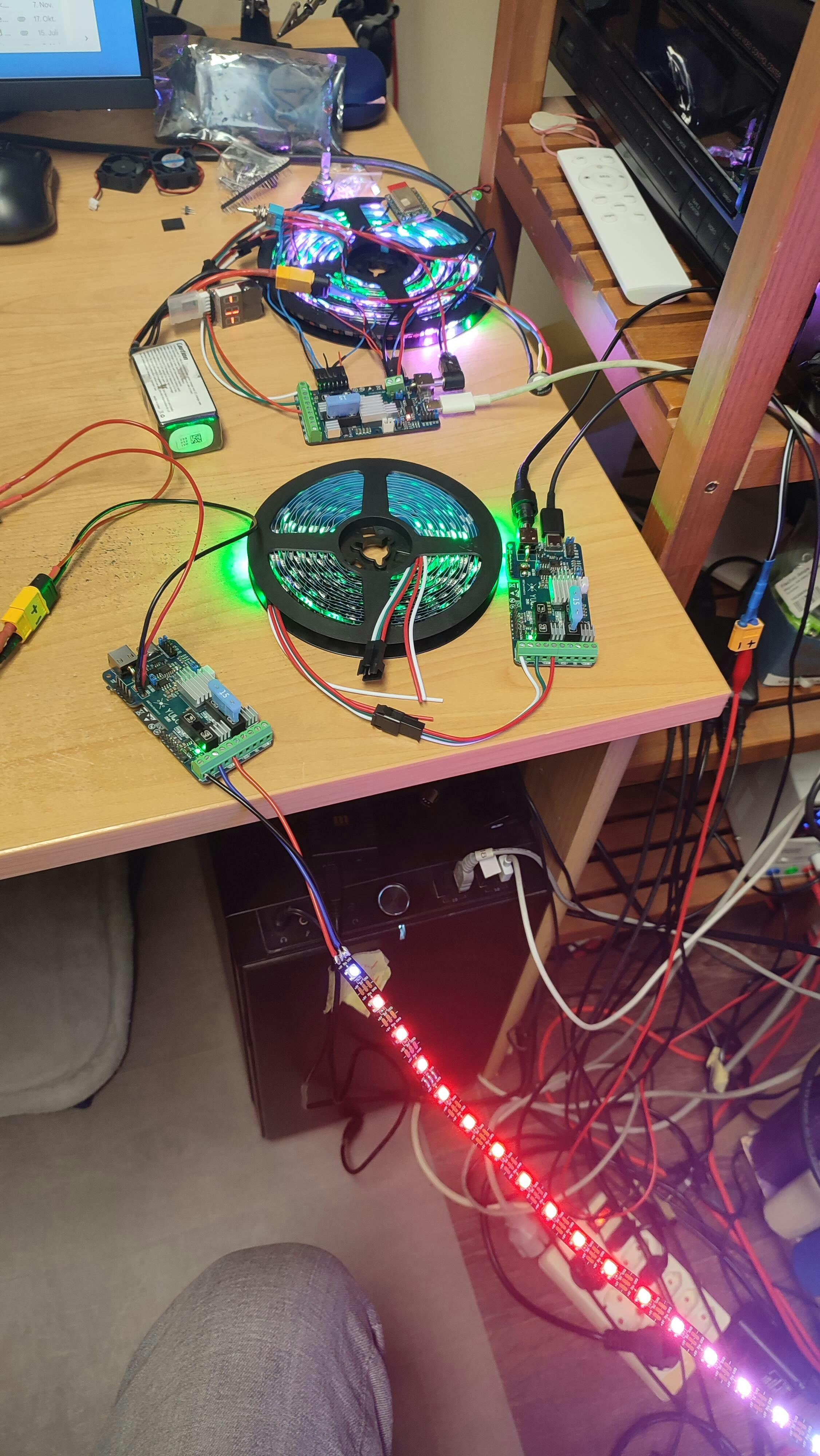

When using more than one YULC, you will be able to power multiple LED strips with just one power supply, each with the input voltage it requires.

If you have 5V, 12V and 24V led strips in your installation, you can drive all of them with only one 24V power supply

YULC provides two separate LED channels, each equipped with a level shifter to ensure clean data transmission even for extended LED strips. You won't need any external level shifter, neither sacrifying a pixel to boost the data voltage.

Each channel also can be independently pyhisically turned
off through dedicated N-Mosfets that will switch the positive side to
save a considerable amount of power for long strips in idle state. Being
integraded inside YULC, you'll not need to wire an external relay to
cut the high voltage side of the led strips power supply, considering
that it would be even more difficult to have a dedicated relay for every
channel.
Furthermore, thanks to mosfets, you are also able to dim simpler strips
through PWM technique

• Heatsinks and active cooling to keep reasonably temperatures even at the highest loads (20A from the converter)

• Overtemperature protection offered from the regulator IC

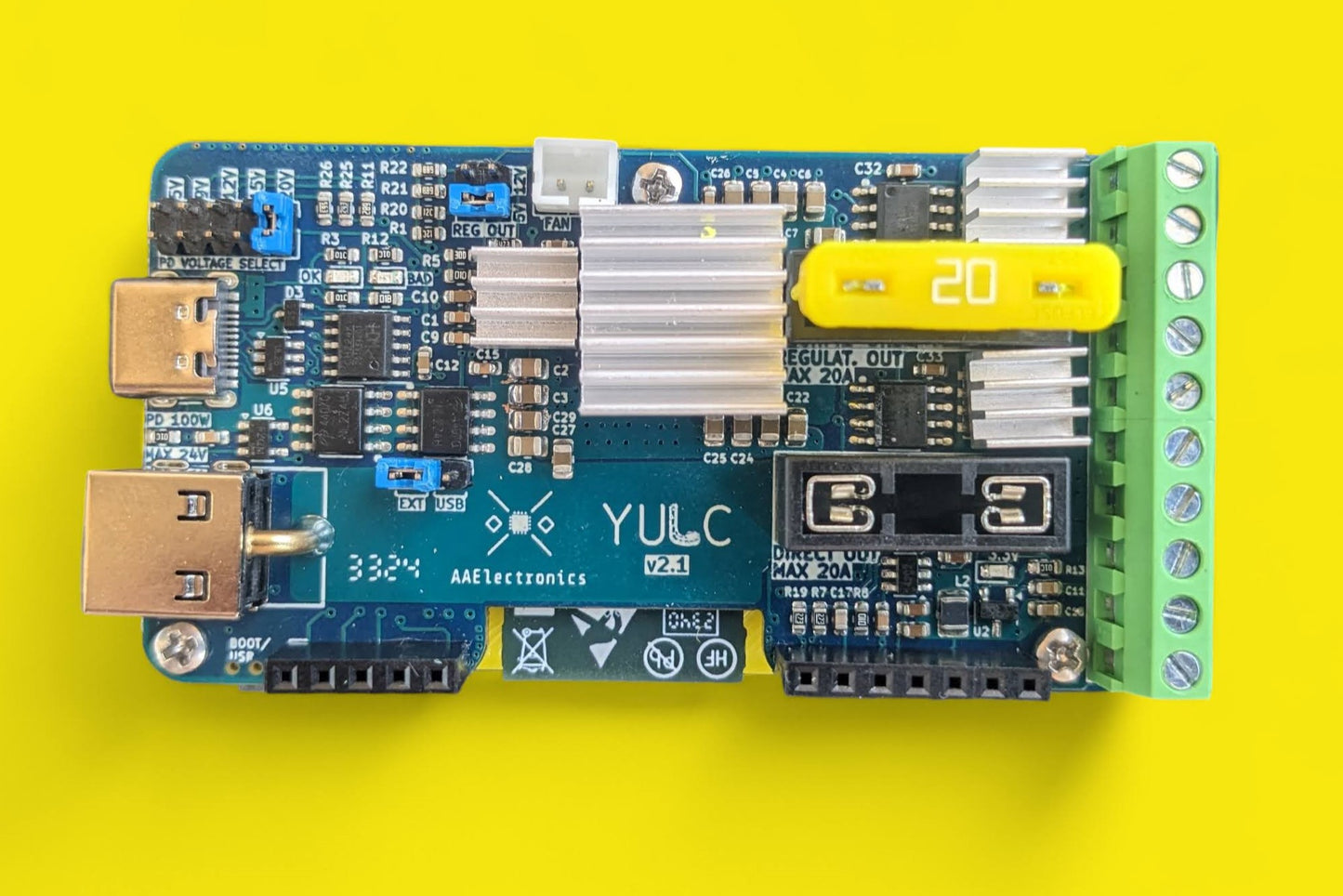

• The main blade fuse directly protects the regulator (and so the charger) against overload faults.
  You can choose to use a 20A to make the regulator not to reach its
  physical current limit or you can resize it to 5/10/15A according to
  what your strips need.
  The holders are compatible with both the mini and standard dimension blade fuses.

• Back-to-back MOSFET configuration ensures safe programming while using an external power supply.

• YULC safely negotiates voltage with your USB-C charger.
  If the charger can not provide the requested voltage, the current is automatically blocked and nothing will be powered.
  Also during the negotiation, nothing will be powered until the voltage
  has been successfully provided by the charger. This safety mechanism
  grants that a wrong voltage won't damage components or the connected LED
  strips with too high/low voltage compared to the selected one.

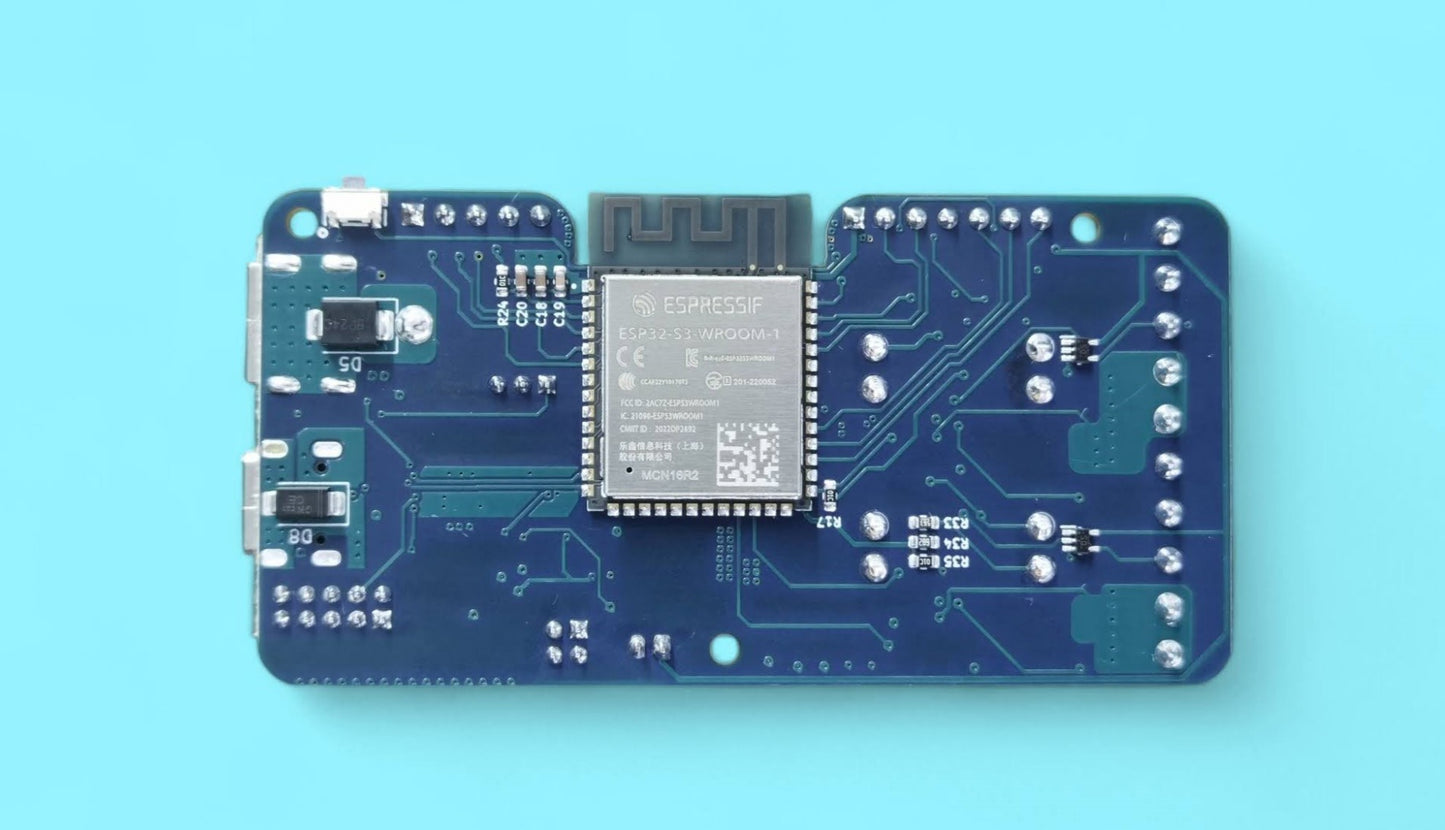

• The ESP32-S3 microcontroller can detect the blown fuse
  making troubleshooting easier in case of a shorting output or an overcurrent event.


The open-source aspect is very important. It allows anyone to take part in the project and keep it alive for a longer time, improving and developing it over time while contributing to research in that field. This is why the schematic, enclosure files and the complete documentation is available for everyone.

Related to this topic, be sure to read the terms of use

The YULC Development Kit will include:

• 1 x YULC
• 1 x 15A blade fuse
• 1 x Set of heatskinks (Regulator, inductor, 2 Mosfets, not mounted)
• 1 x 5V Fan
• 1 x Set of M2 screws for the enclosure

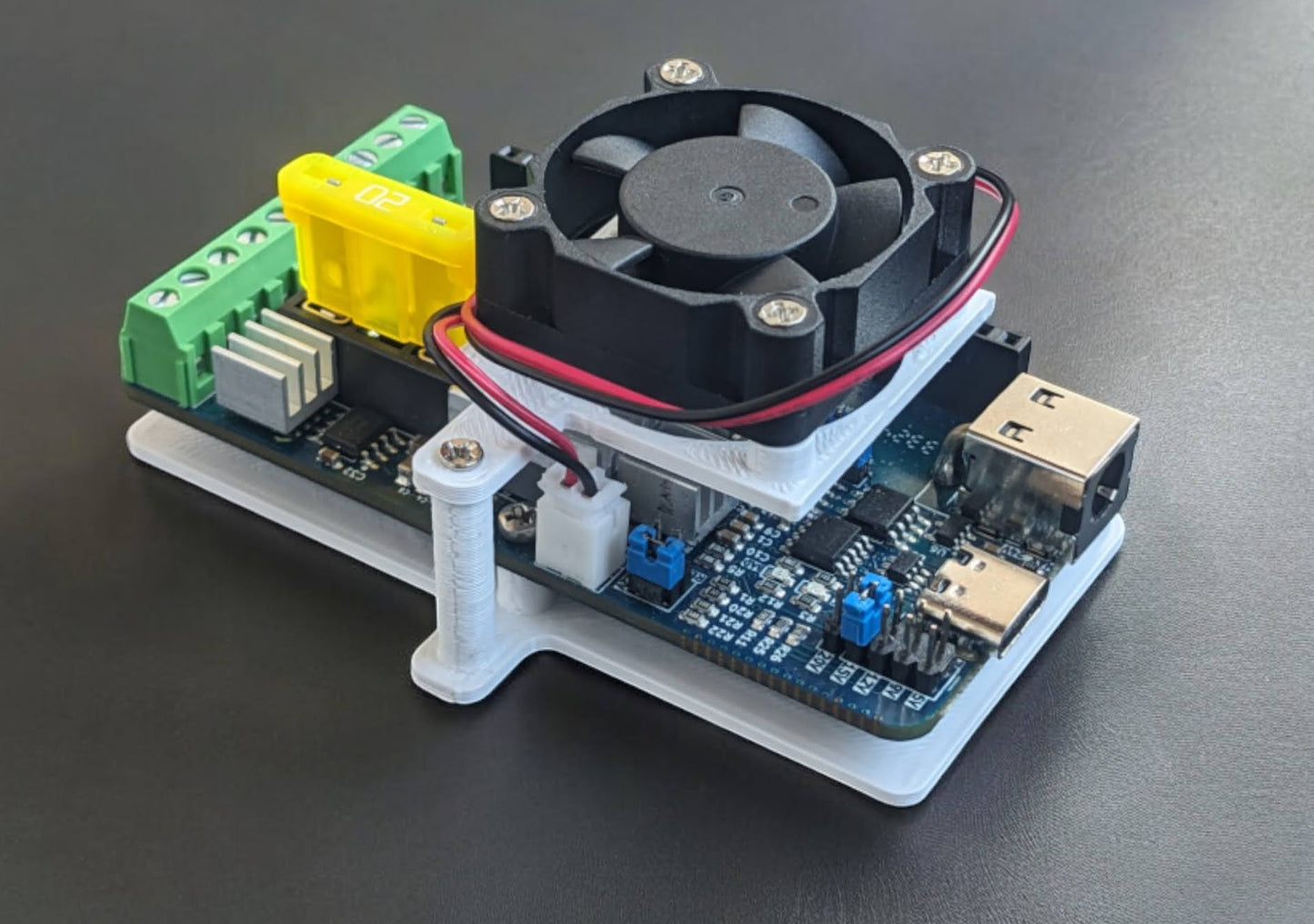

To host the fan you'll need to print the enclosure. Using PLA is more than enough!
